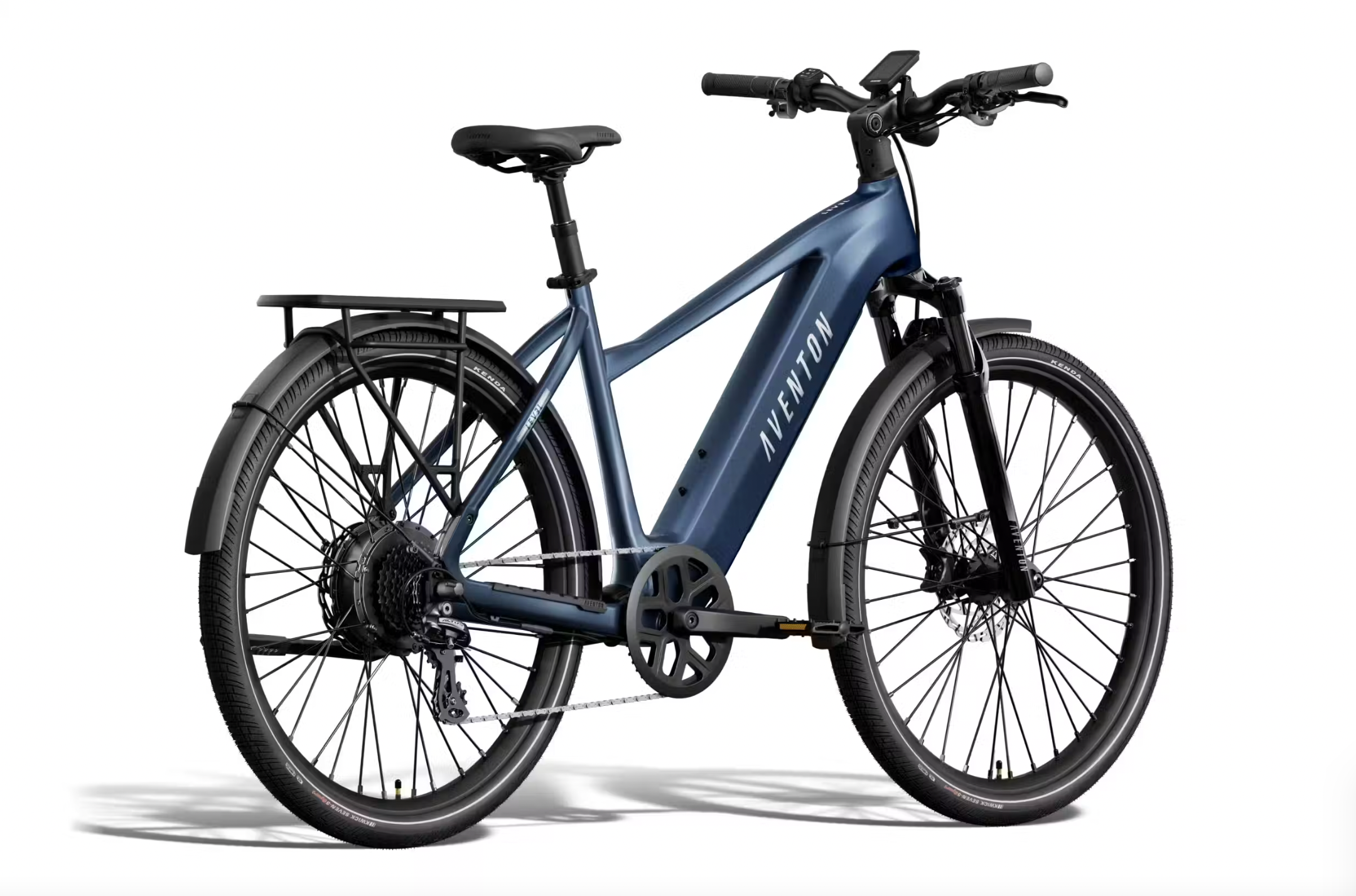

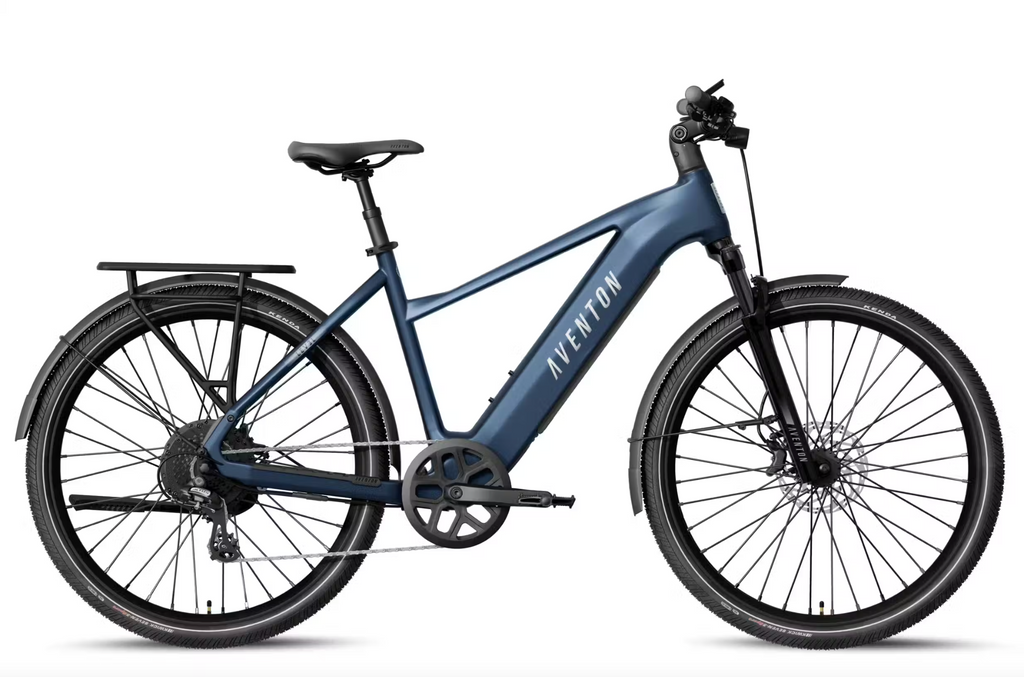

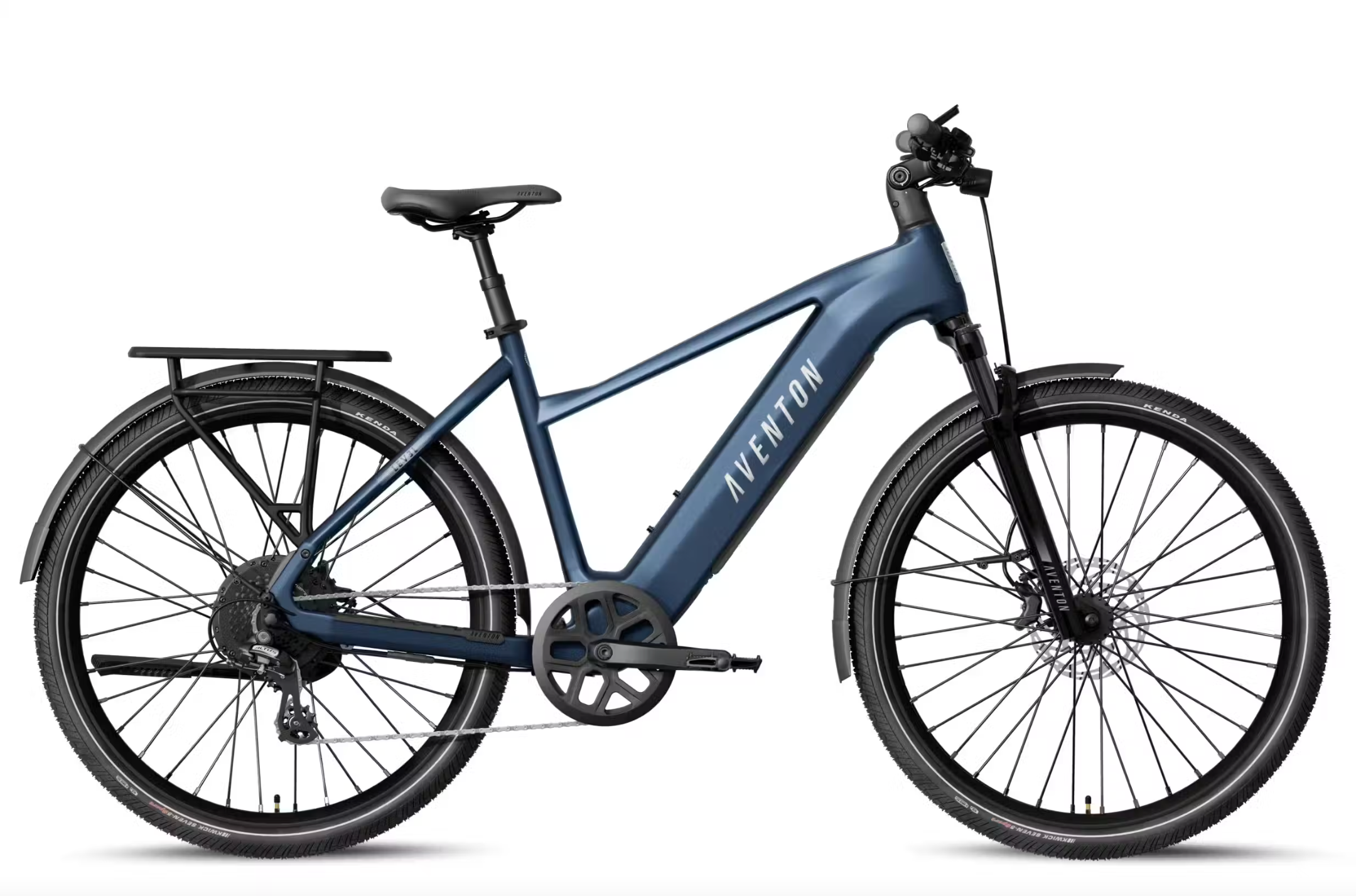

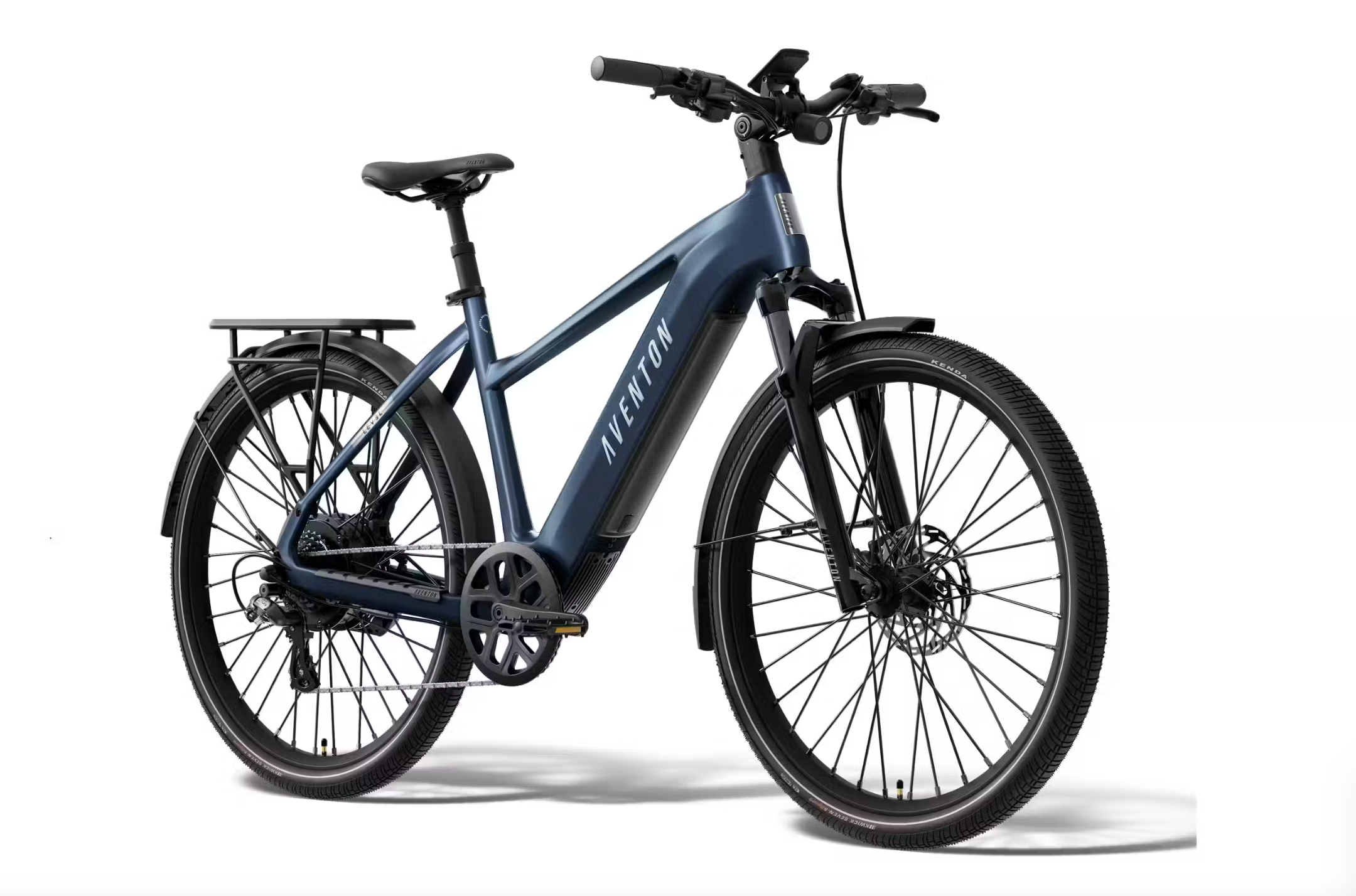

Take your commutes to the next LEVEL. The all new Level 4 comes fully equipped with everything you need to trade your daily drives for daily rides. A rear rack and fenders ensures you can carry necessities while staying clean and dry during your rides. A front suspension fork and suspension seat post provide maximum comfort on rougher terrain. ACU technology provides peace of mind with GPS tracking, auto-lock, unusual movement detection, alarm system, and much more to keep your bike safe and secure. Comfortable geometry paired with an adjustable stem ensure the perfect fit, while the implementation of Ride Tune capabilities along with adjustments to Level 's motor power curves provide up to an additional 16 kilometres of range compared to its predecessor. Ditch the traffic, and elevate your daily commutes with the Level 4.
The Level 4 has an updated 750w hub motor that features a peak of 1188w. The bike can kick out a max Torque of 96Nm! With the all new regenerative braking the Level 4 has the longest range of an any Level series bike yet. The display has also been updated and now it is easier to read and navigate than ever before.
Aventon bikes are sold fully assembled, tuned and tested by the shop. The bikes come with a 2 year manufacturing warranty that covers all the electronics and components. We handle all warranty claims in house on our customers behalf. In addition the bikes come with a 1 year service warranty and a free 1 year tune up.
E-bike customers receive 30% off all parts and accessories for 1 year (car racks not included).
-
Motor: 36V, 750W (Sustained), 1188W Peak Brushless Rear Hub Motor
-
Motor Torque: 96Nm
-
Throttle: Aventon LH Handlebar Mounted
-

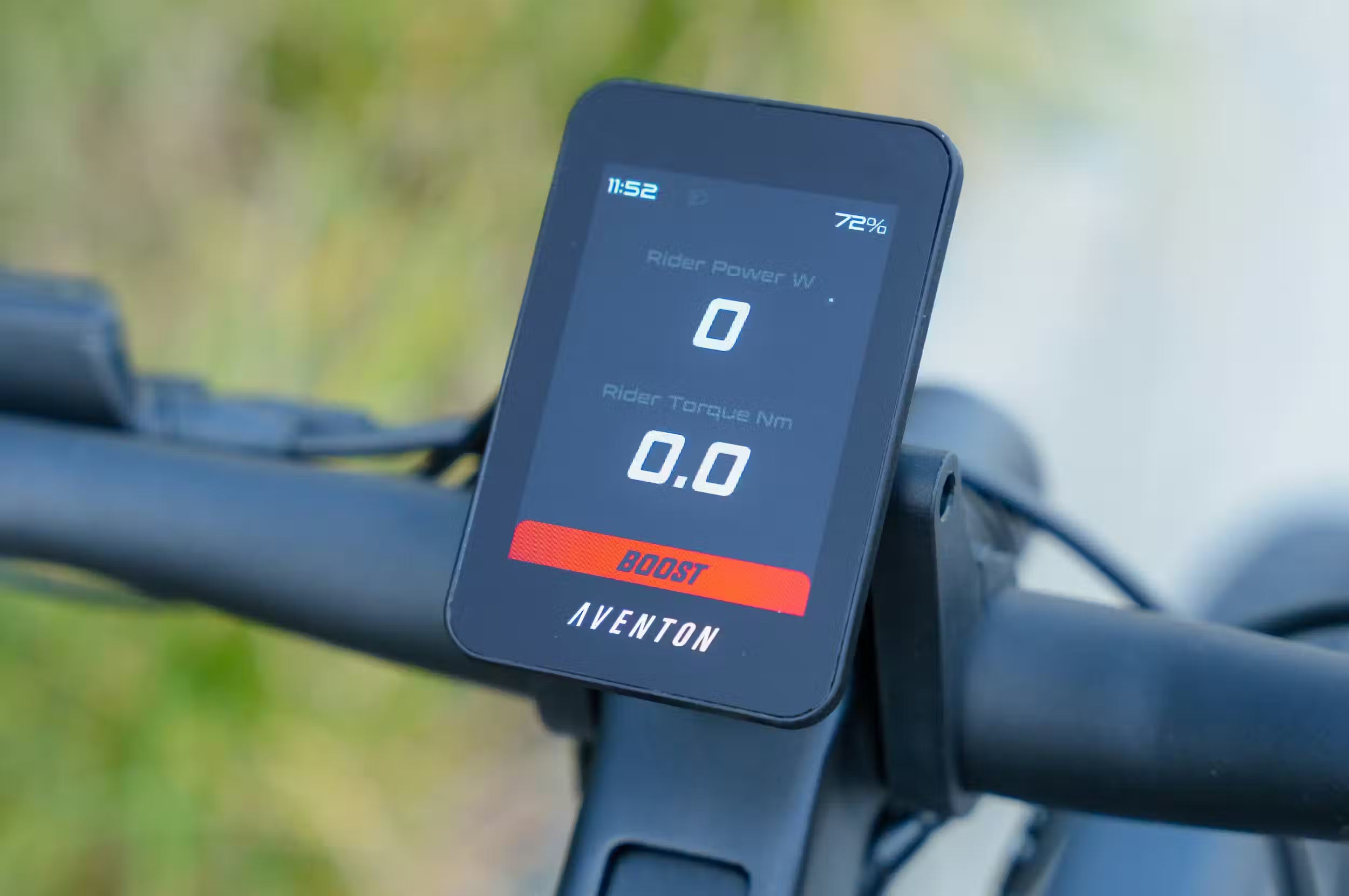

Display: Aventon A280 LCD Smart Easy Read Display with Backlight, Color screen with app
-
Battery: Removable Internal Lithium-ion. 36V, 20Ah, 733Wh, LG 21700 cells
-
Sensors: Double Sided Bottom Bracket Torque Sensor (with Cadence option)
-
Pedal Assist: Eco, Tour, Sport, Turbo, and Boost
-
Charger: 36V Output: 42V/ 4A 5 Hour Charging
-
Range: Up To 120 Kilometers
-
Weight: 68.5lbs est.
- Weight Limit: Maximum Payload Capacity: 300 lbs
- Warranty: 2 Year (parts), 1 Year (service)
-
Frame: 6061 Aluminum, Gravity Cast Front Triangle
-
Fork: Aventon Suspension Fork, 80mm travel, w/ lockout,coil spring. 15x100mm thru-axle, 43mm offset
-
Headset: VP Sealed Bearing Headset
-
Saddle: Aventon by Velo
-
Front Wheel: 27.5in, 13g, 36hole, double wall Aluminum, Thru axle, Schrader Valve, black
-
Rear Wheel: 27.5in, 12g, 36hole, double wall Aluminum, Nutted Hub Drive Motor, Scharder Valve, black
-
Tubes: Butyl Rubber, Schrader Valve
-
Chain: KMC Z Series, 8 Speed
-
Shift Lever: Shimano Altus RD-M310
-
Cassette: Shimano Acera 12-32T / 8 Speed CS HG200-8
-
Rear Deraileur: Shimano Altus RD-M310 8sp
-
Crankset: 170mm w/ 46 T 104 BCD
-
Brakes:
Tektro HD-E3520 2-Piston Hydraulic Disc w/ E-Cutoff
-
Regenerative Braking: Incorporated into the rear hub
-
Tires: 27.5 x 2.20 Kenda Kwick Seven-5 Sport K1052-006, Ebike Rated, Reflective Sidewalls
-
Handlebar: Aluminum 31.8mm, 680mm
-
Stem: Adjustable 31.8mm Threadless
-
Bottom Bracket: Square Taper, Sealed, double sided Torque Sensor 83mmx158.5mm
-
Pedals: 9/16" Alloy Platform
-
Seat Post Clamp: Quick Release
-
Seatpost: Aventon Suspension Seatpost with 50mm travel (30.9mm)
- Included Accessories: Fenders, MIK Rack (60lb Capacity), Suspension Seatpost, Adjustable Stem
Regular 5'3" to 5'10"
Large 5'10" - 6'4"
Enhanced Security meets Advanced Technology
The revolutionary Aventon Control Unit (ACU) keeps you fully protected and always connected — all at the same time. Augmented security features including Remote Lock†, Geofencing† and Passcode safeguards your Level 3 and deliver an ultimate peace of mind. When cruising, you can rely on GPS†tracking, 4G† connection and cloud synchronization to get your bike stats in real time.
